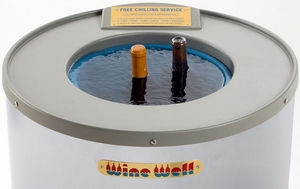

Details of the Microchiller

HOW DOES IT WORK? LARGE ENERGY SAVINGS
The Microchiller uses rapidly recirculating, near freezing tap water to accomplish its speedy chilling.  Red wines are chilled to 60°F(16°C) in 3 minutes; whites to 50°F(10°C) in 6 minutes.  The Microchiller can totally and easily satisfy customers' requirements for chilled wines and other beverages in the largest retail stores and restaurants. The machine uses the same amount of energy as a single 100 watt light bulb when in standby.  The energy cost of chilling wine is less than one half-cent per bottle.  No other chilling method comes close to such economy.  Also, the risk of wine spoilage in upright refrigerated storage (from dried out corks) is eliminated.

Click here for more energy consumption information

NO ASSEMBLY REQUIRED THE CABINET
You can fill the machine with water and use it as soon as it is unpacked (but please read the Owners Manual).  The Microchiller moves easily on its own casters for ideal placement and so that water changes (about once a month) can be made near a sink or drain. The cabinet, in your choice of gray or almond colors, is made of super tough ABS plastic and the elegant top is half-inch thick Corian* solid surfacing.  Each cabinet is fitted with a backboard, whose use is optional.  One side of the board has a "free Service" sign with how-to-use instructions; the other side is blank.  *"Corian" is a trademark of the DuPont Corp.
WARRANTY ORDERING INFORMATION
A full one year warranty on all parts and a 90 day warranty on all labor comes with each machine Orders are shipped 2-3 weeks from date of order, FOB Milford, CT.  Please call or fill in the information on our Contact Us page to receive current pricing or more information.

SPECIFICATIONS

Dimensions:

14.25 x 16.25 x 33.5 inches (36 x 41 x 85 cm.)

Shipping Weight:

81 lbs. (37kg.)

Shipping Carton:

18 x 20 x 36 inches (46 x 51 x 91 cm.)



Chilling Tank Diameter:

10 inches (25 cm.)

Chilling Tank Depth:

9 inches (23 cm.)

Total Water Capacity:

5 gallons (19 liters)



Refrigeration Unit:

Tecumseh Products - 2000 Btu per hour.  R-134a

Water Pump:

Little Giant - submersible, magnetic drive

Control:

Ranco



Power Required:

115 volts, 60 Hz, GFCI grounded; 230V/50 available.

Power Consumption:

17 watts idling; 320 watts with refrigeration.


The Wine Well Chiller Company, INC. Milford, Connecticut, USA
